Raspberry Pi internal 4 Ports USB Hub & AD/DA & Multi-function I2C Board
(RTC-DS1307, Temperature Sensor-TMP102, D/A ,A/D , EEPROM, MCP23008, DS2482-100)
i2c Bus Detect Status 18 -> DS2482-100 20 -> MCP23008 48 -> TMP102 68 -> RTC DS1307 50 -> 24c32 60 -> MCP4725 49-> ADS1015 use eeprog 0.7.6 can read/write for 24c32 or 24cxx 23008 8 bit GPIO use 23008.py can set each bit output high or low
MCP4725 12bit Digital-to-Analog Converter
* demo 9 bit output sinewave.py at address "60"
|
MCP4725 demo 9 bit sinewave.py at address "60"
mcp4725 demo sinewave.py result * ADS1015 12bit Analog-to-Digital Converter
demo 12 bit 4 channel input ads1015-49.py at address "49"

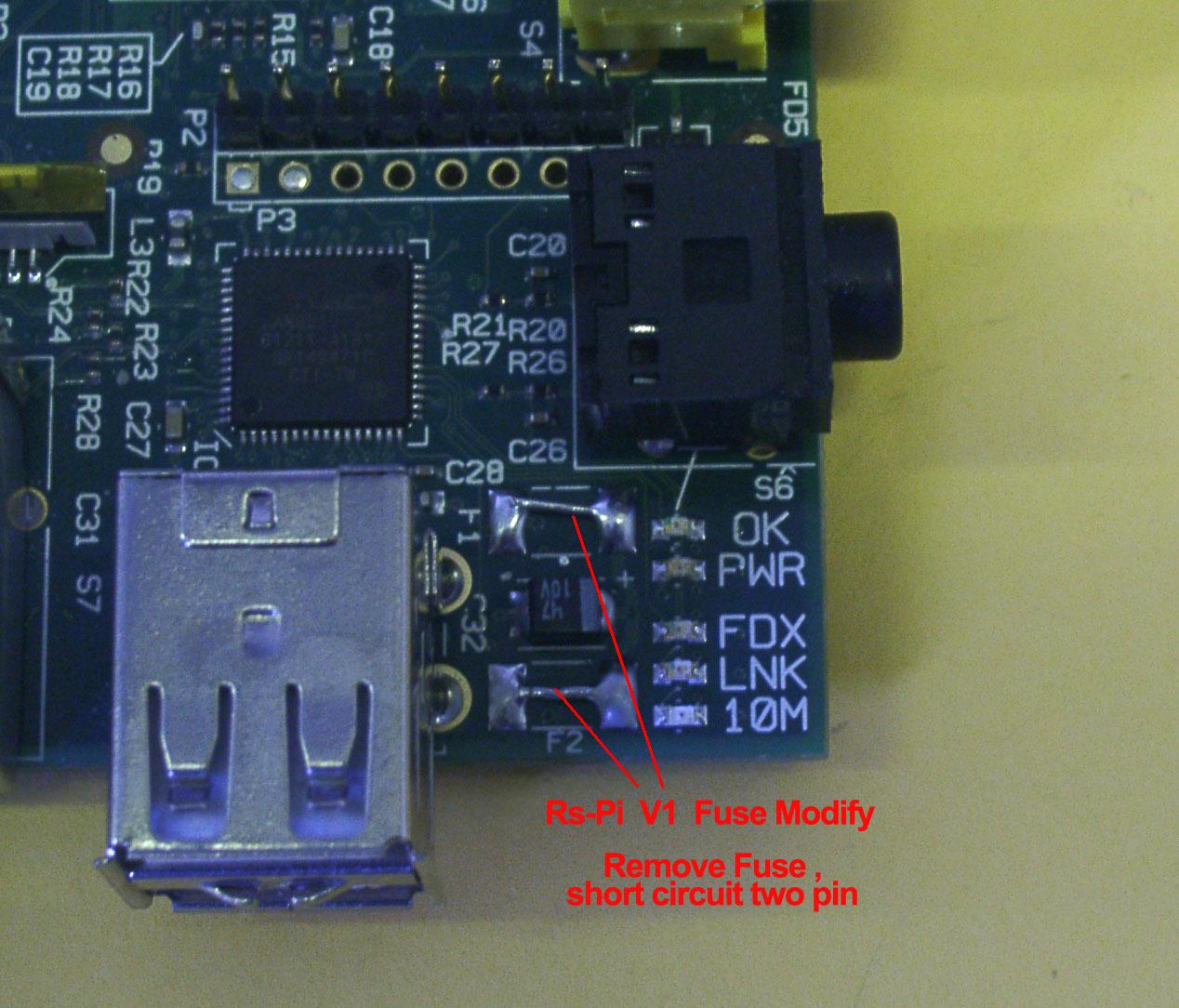

/28.7E1CC8030000 - Connect & Detect DALLAS 18B20P TEMP Sensor cat temperature -- 22.312 & 32.125 Spec Detail 1. U5 MCP23008 J2 (GP0 ~ GP7 ) OUTPUT & GP0,GP1,GP2,GP3,GP,GP5,GP6,GP7 (8 LED OUTPUT ) R20,R21,R22 (A0,A1,A2) address select JP12 Disable Jumper Datasheet 2. U8 RTC DS1307 with CR1220 Battery Datasheet 3. U7 TMP102 Temperature Sensor Datasheet 4. U9 24C32 32Kbit EEPROM JP10 Disable Jumper Datasheet 5. U6 MCP4725 12bit Digital-to-Analog Converter , Datasheet JP11 (AOUT, GND) JP1 Disable Jumper 6. U11 ADS1015 12bit Analog-to-Digital Converter , Datasheet J7 INPUT (AIN0, AIN1,AIN2,AIN3,GND,3V3) JP12 Disable Jumper 7, J5 (5V, GND,SCL,SDL) J6(3v3,GND,SCL,SDL) I2C output 8. U15 DS2482-100 I2C to 1-Wire bridge device J22 1-wire Port pin 1 - pin4 (5V,GND, OW (1-Wire Data, ESD Protected). RT (1-Wire Return/Ground ,ESC protected) 9. U16 DS9503P 1-Wire ESD protection diode 10. U2 - USB 4 Ports HUB chipset J1 (JP3) USB HUB upper port signal input from Rs-Pi 11. J13 Mini USB 5V input for USB Hub, you don't need plug 5V , the USB Hub already use 5V from Raspberry Pi (P1 pin2), if your USB device need more power, then you can plug-in 5V in this port.
10. J11 for RS-Pi V2 GPIO connector (got 4 more GPIO pin) |
