Raspberry Pi- RGB LED HAT Board

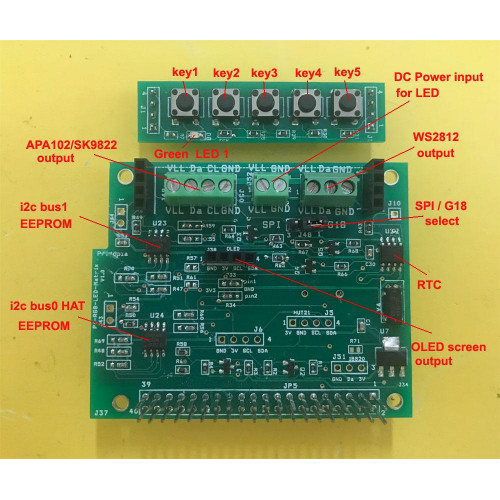

1. Provide RGB LED Power output connector

2. Provide i2c DS1307 RTC with CR1220 back-up battery

3. Provide WS2812 RGB LED output connect can choose use SPI signal / GPIO18

4. Provide apa102 /sk9822 output connect

5. Provide 3.3V power Regulator for 3.3V device

6. On board logic level converter for apa102 /ws2812

7. Provide i2c bus 0 HAT EEPROM

8. Provide i2c bus 1 EEPROM

9. Provide 5 (GPIO) key input and 1 (GPIO) Green LED output

10. support i2c 128x64 OLED screen&&;

Video link:https://youtu.be/1SIdF6vaNRI

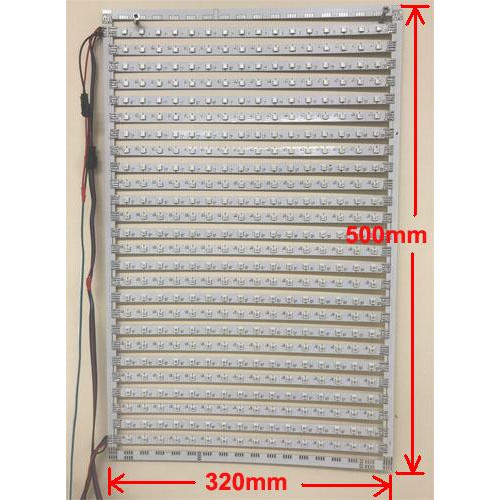

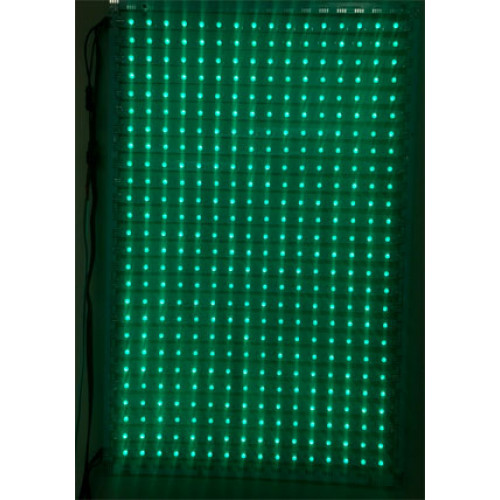

one unit RGB LED matrix 16x26= 416 pixels -- 32cm x 50cm

16x26 per unit x4 = 32 x 52 = 1664 pixels

use 12pc 26x16 LED modules connect to 12pcs -- 104 x48 =4992 pixels --200cm x 96cm

example:12pcs modules (each module 26 x 16) -- 104 x 48 = 4992 pixels -- 200cm x 96cm
