1. Provide RS232 x2 & RS485 x2 RJ45 output
2. 4K HDMI Splitter 2x 1 to 2 input from Pi4 HDMI 0/1

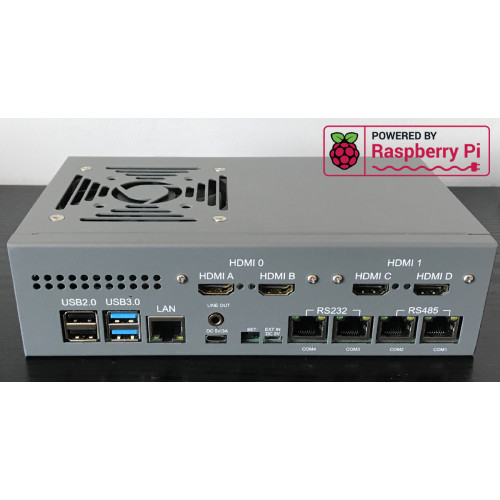

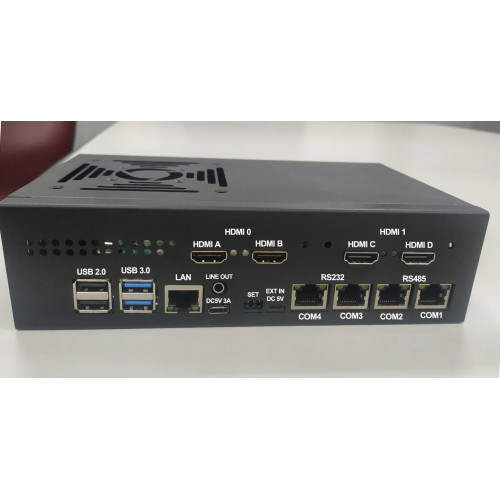

3. Standard HDMI connector x4 , can connect up to 4 Monitor
Pi4 HDMI 0/1 to 2 set 1 to 2 HDMI Splitter
4. Pi4 Audio output and USB C power input all in front panel side
5. On board DS18B20 1Wire Temperature sensor

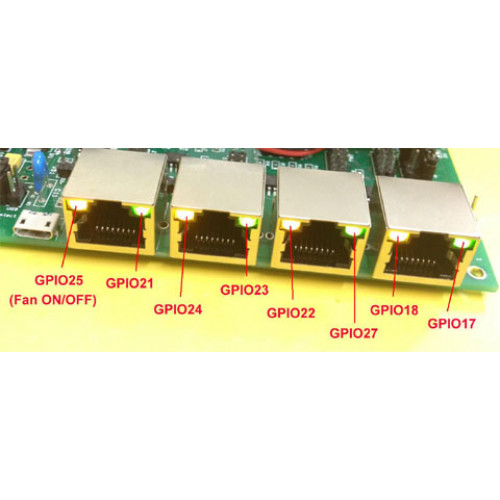

6. Provide 8 GPIO control LED
7. 1 GPIO 5V Mini Fan control pin (ON/OFF control ) ( 2.0mm / 2.54mm pitch )
8. On board RTC function with CR1220 Battery socket
9. UART Board Power select jumper from Pi or Micro USB
10. 5V Mini Fan Power select jumper from Pi or Micro USB
11. It provides an individual 3.3V power for UART Board
12. Provide HAT EEPROM for future driver program update.
13. One software control Micro Switch for Program ( Shut Down , reboot....)

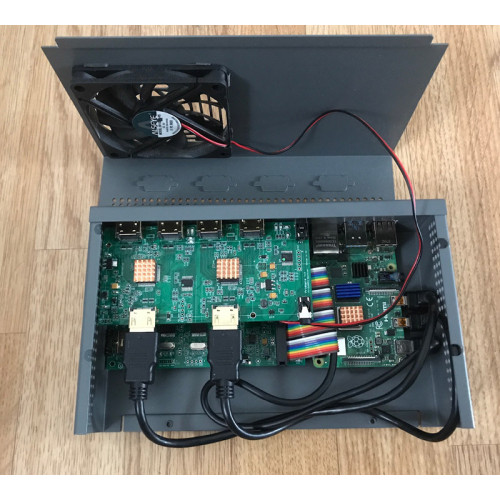

14. use 20x2 40pin cable connect to Pi
15. PCB size 120mm x 85mm
16. Box size 200mm x 125mm x 55mm
17. 80mm x80mm & 40mm x40mm fan screw hole
18. Raspberry Pi model 4B still can use on board Bluetooth & WiFi
Driver Load , system info and demo Send/Receive Python program
1. i2cdetect screen you will see 4c, 4d and 68 location display with "UU"
2. dev.sh display ttyPiCOM0 ~ ttyPiCOM3
3. Screen resolution setting ( 3840 x 2160)
4. receive python program use COM1, COM3
5. send python program use COM 2, COM 4
6. DC Fan C demo program
7. DC Fan python demo program.
8. DC Fan system status screen terminal.
