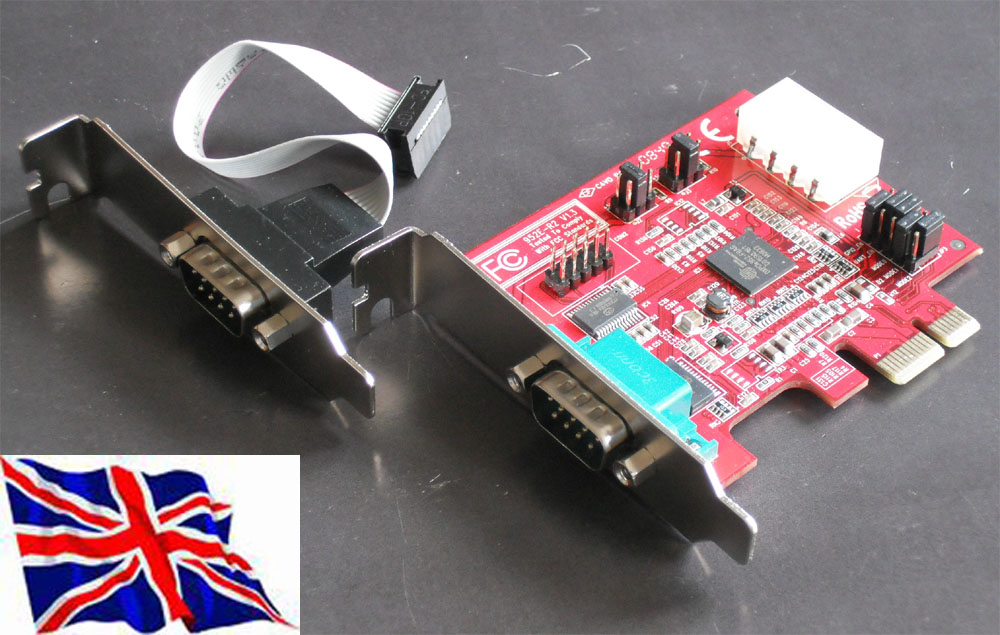

PCI EXPRESS PCIe RS232 SERIAL 2 PORT CARD with Power & Low Profile Bracket (Support Vista, Win7 )with DC POWER OUTPUT ON PIN 9 of the Serial Port User can also choose to draw the needed power from the external system power supply. |
PCI-e one chip solution(OXFORD OXPCIe952 chip) It's real COM Port in your computer, not USB to COM port
The adapter card is based on a oxford single chip design, that allows you to harness the full capability of PCI Express (PCIe) - providing optimum reliability and speed, and reducing the load applied to the CPU by as much as 48% over conventional serial cards.
FEATURES
* Fully compliant with PCI Express Base Specification 1.1
* Provides two DB9 RS232 ports
* High speed 16C950 compatible UART controller on-board
* Supports serial transmission rate up to 460Kbps
* On-chip hardware auto flow control to guarantee no data loss
* Built-in 128K byte DMA software FIFO
* No IRQ resource required
* Easy Plug and Play Installation
* Works with various types of RS232 serial devices including modems,
PDAs, label printers, bar code scanners, digital cameras, and more
* Supports Windows® 2000, XP, Server 2003 ,Vista , Win7 ,Win8 and Linux
|
