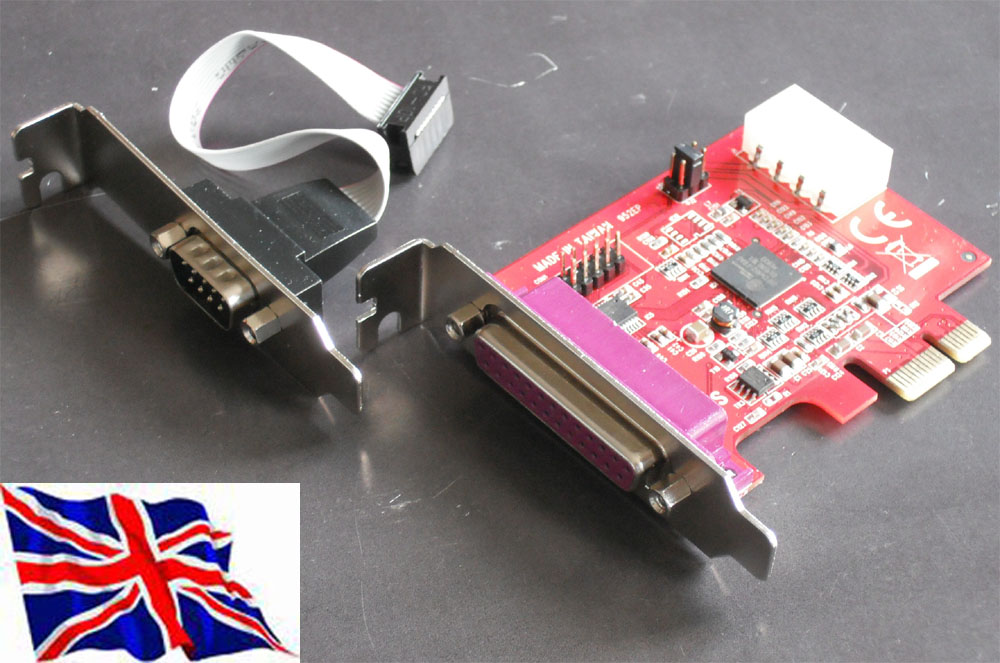

PCI Express PCIe RS232 1 Serial (16C950) + Parallel Card with Power & Low Profile Bracket (Support Vista, WIn7) with DC POWER OUTPUT ON PIN 9 of the Serial Port 5V/12V/RI(No Power) Power selectable on each individual port (DB9 Pin9) The card is specially designed to allow power output from the ninth pin of the connector to enable power up User can also choose to draw the needed power from the external system power supply. PCI-e one chip solution(OXFORD OXPCIe952 chip) It's real COM Port in your computer, not USB to COM port It's real Parallel Port in your computer, not USB to Parallel port high compatible with Parallel type device (Printer, KeyPro, Scanner).
The adapter card is based on a oxford single chip design, that allows you to harness the full capability of PCI Express (PCIe) - providing optimum reliability and speed, and reducing the load applied to the CPU by as much as 48% over conventional serial cards. |
FEATURES:
* Fully compliant with PCI Express Base Specification 1.1
* Provides one DB9 RS232 ports
* High speed 16C950 compatible UART controller on-board
* Supports serial transmission rate up to 460Kbps
* On-chip hardware auto flow control to guarantee no data loss
* Built-in 128K byte DMA software FIFO
* No IRQ resource required
* Easy Plug and Play Installation
* Works with various types of RS232 serial devices including modems,
PDAs, label printers, bar code scanners, digital cameras, and more
* Single port IEEE 1284 Parallel ports with communication speeds up to 15Mbps/s
* Supper IEEE 1284 Parallel ports standard
ECP（Enhance Capacity Port）/ EPP（Enhance Parallel Port）
SPP（Standard Parallel Port）
* Easy Plug and Play Installation
* This high performance SPP/EPP/ECP parallel card adds one DB25 parallel port,
perfect for connecting printers, scanners CD-R/RW drives, memory card readers,
printers, scanners, bar code readers and more
|
