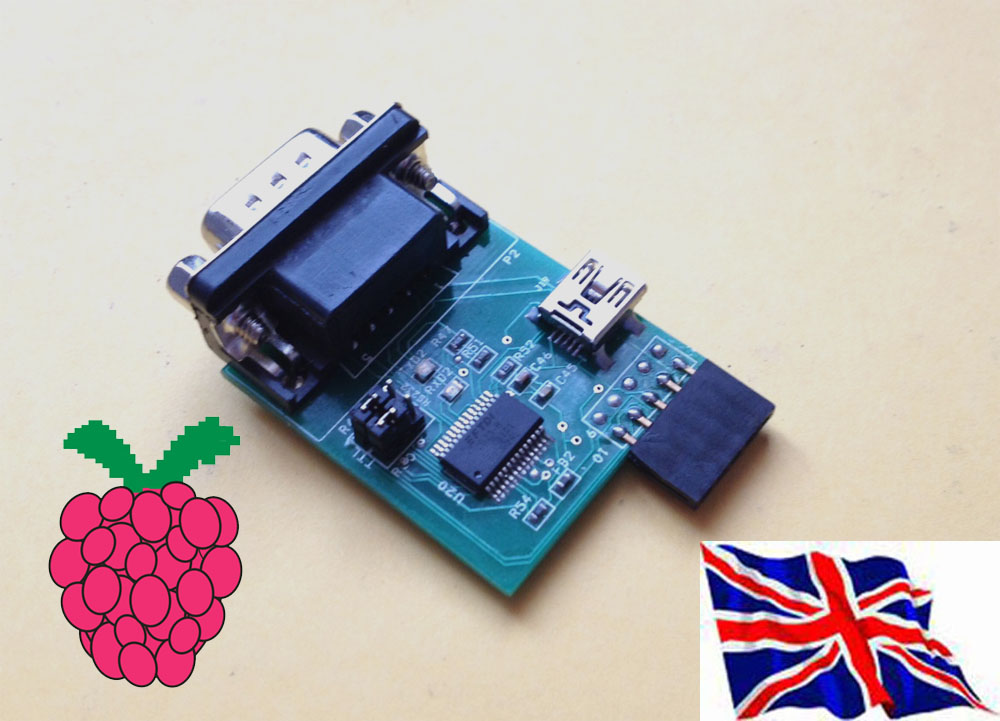

Rs- Pi USB-TTL & RS232 module Board

Product Code:rs-pi-usb-ttl-232
Availability:0
Weight:0.00gm
Price:£15.99
Out of stock
Compare


1. U10 FTDI FT232RL  USB to TTL chip

2. U12 ZT32433 RS232 Transceiver Driver

   3. J4 Mini USB   input from PC or Mac

   4.  P1 Male DB9   RS232 output

   5. J14 connect to Raspberry Pi P1 (USB -TTL)

   6.  R28-R32, Jumper select USB to TTL or USB to RS232
