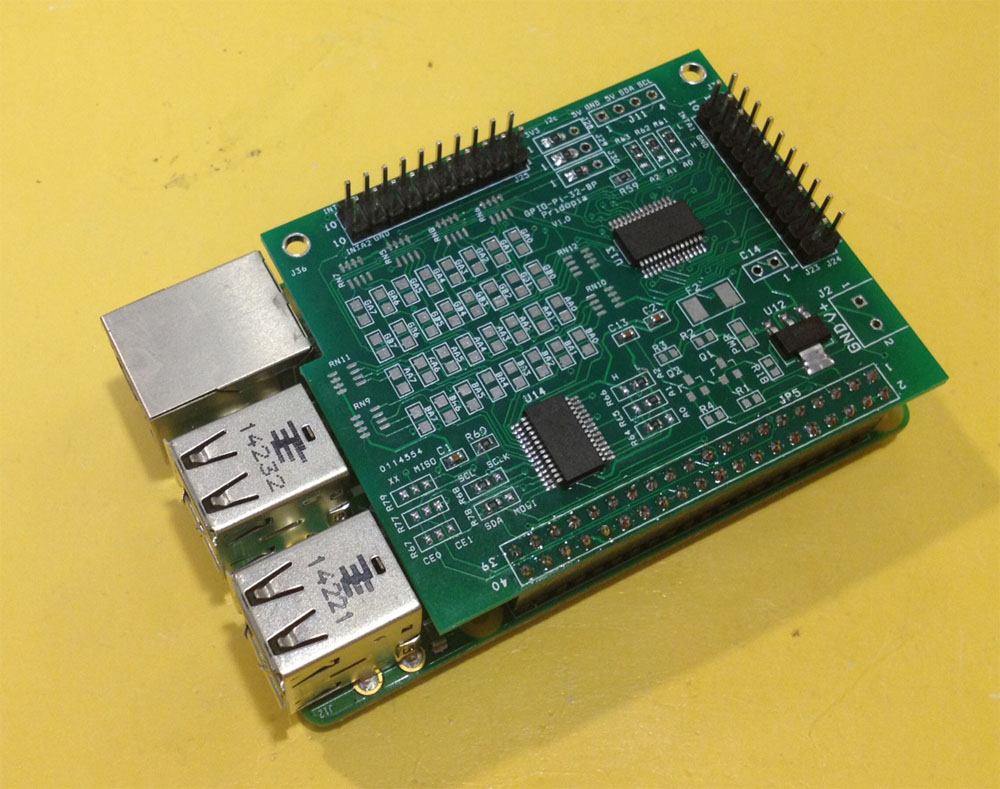

i2c detect status 20 -> MCP23008 48 -> tmp102 50 -> 24c32 60 -> MCP4725 68 -> RTC DS1307 21 , 22 -> 23017 x2 use 23017-21.py set each bit to be High or Low our new output test program 23017-2port-s-v103.py display all 32 GPIO status 1. JP23 GA0 ~ GA7 U13 Port A JP24 AA0 ~ AA7 U13 Port B 2. JP25 BA0 ~ BA7 U14 Port A JP26 GB0 ~ BG7 U14 Port B 3 R61,R62,R63 ( for U13 Address select A0,A1,A2 ) 4. R64,R65,R66 ( for U14 Address select A0,A1,A2) 5. U13 (21) 23017 -1 Port A,B 6. U14 (22) 23017-2 Port A,B 7. pin out 2X10 , |
Bank A(1-10) GPIO (0,1,2,3,4,5,6,7,GND, INTA) Bank B (1-10) GPIO (0,1,2,3,4,5,6,7,GND, INTB) A0, A1, A2 address * right side GND low - 0 * left side Vcc High - 1 000 - 20 001 - 21 010 - 22 011 - 23 100 - 24 101 - 25 110 - 26 111 - 27 Support our Pi_Scratch software
U1 to U2 i2c 23017 address 21,22
Command "i2"+ "address(20-27)" + "a" +"bit(1 to 8)" for Port A
Command "i2"+ "address(20-27)" + "b" +"bit(1 to 8)" for Port B
Command "bit"+ "address(20-27)" + "a" +"bit(8 to 1)" for Port A
Command "bit"+ "address(20-27)" + "b" +"bit(8 to 1)" for Port B i221a1 --> i2c address 21 Port A bit 1 ON/OFF
i222b4 --> i2c address 22 Port B bit 4 ON/OFF
bit22b01010101 --> address 22 port B from bit 8 to 1
output --> 01010101
bit21a01010101 --> address 21 port A from bit 8 to 1
output --> 01010101
bit21aoff --> address 21 Port A all OFF/clear
bit21boff --> address 21 Port B all OFF/clear
bit22aoff --> address 22 Port A all OFF/clear
|
