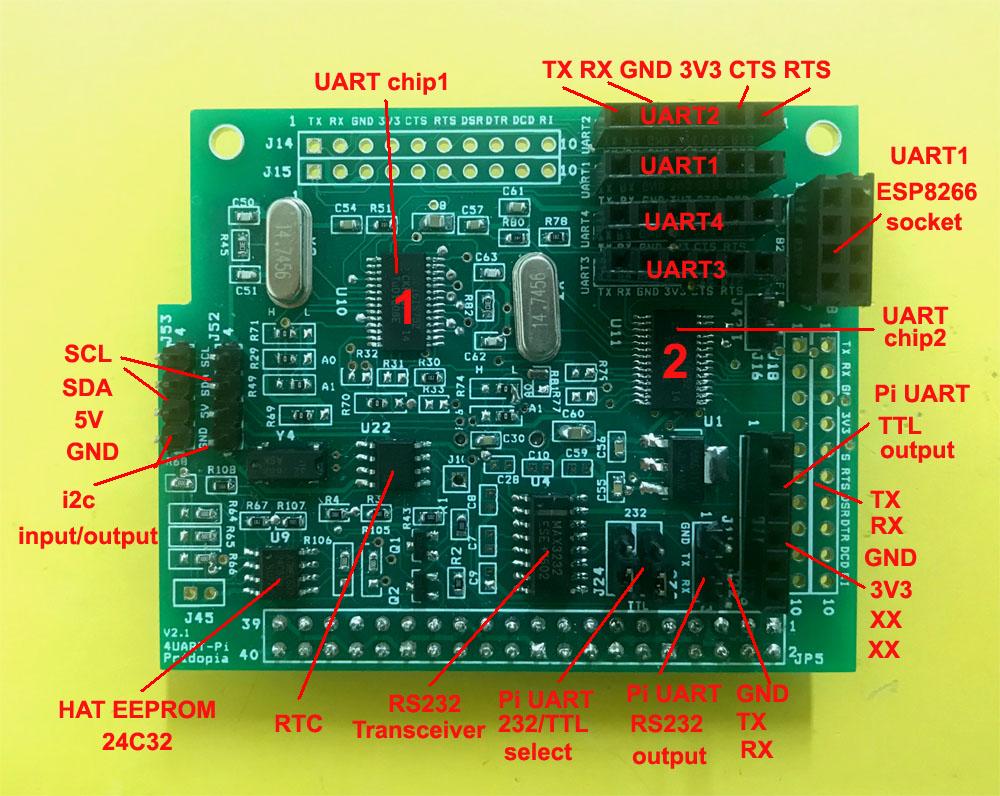

3. 2 set i2c signal out GND,5V,SDA,SCL for extend extra UART HAT
4. TTL UART1 support ESP8266 WiFi module socket
5. It provides an individual 3.3V power for UART & output port
6. Provide RTC & RTC backup battery socket
7. Provide HAT EEPROM for future driver program update.
Serial GUI Control Panel
Control up to 8 Serial Ports
1. Scan: Scan for available UART devices.
2. Launch cutecom together when starting Serial Port.
3. Port number in system
4. Baud Rate choose
5.6.7. UART Port Information: Port Address 0x48,0x49, 0x4c, 0x4d
Chip Address Location, Channel Number ( 1 / 2 ), TX and RX receive counter, and Serial port Location /dev/pts/X
8. Start : Start UART port
Also provided is a terminal command mode to activate serial ports through a terminal / ssh.
You can also activate a serial port on boot up with the provided software.
Commands for starting the serial ports via command line; ./Pi8s -a ADDR -c CHANNEL -b BAUD -s DEVPTS
ADDR = Address of Serial Port e.g. 0x48, 0x49, 0x4C, and 0x4D
CHANNEL = Channel of serial Port ( 1 / 2 )
BAUD = Baud Rate for the Serial Port
DEVPTS = PICOM Service Number ( Will direct the filename to /dev/picomX where X = your number )
For example, To start a serial port from 0x49, on channel 2 with 115200 Baud run the following; ./Pi8s -a 0x49 -c 2 -b 115200 -s 1
This will activate the serial port and then set /dev/picom1 to your serial port location /dev/pts/X
