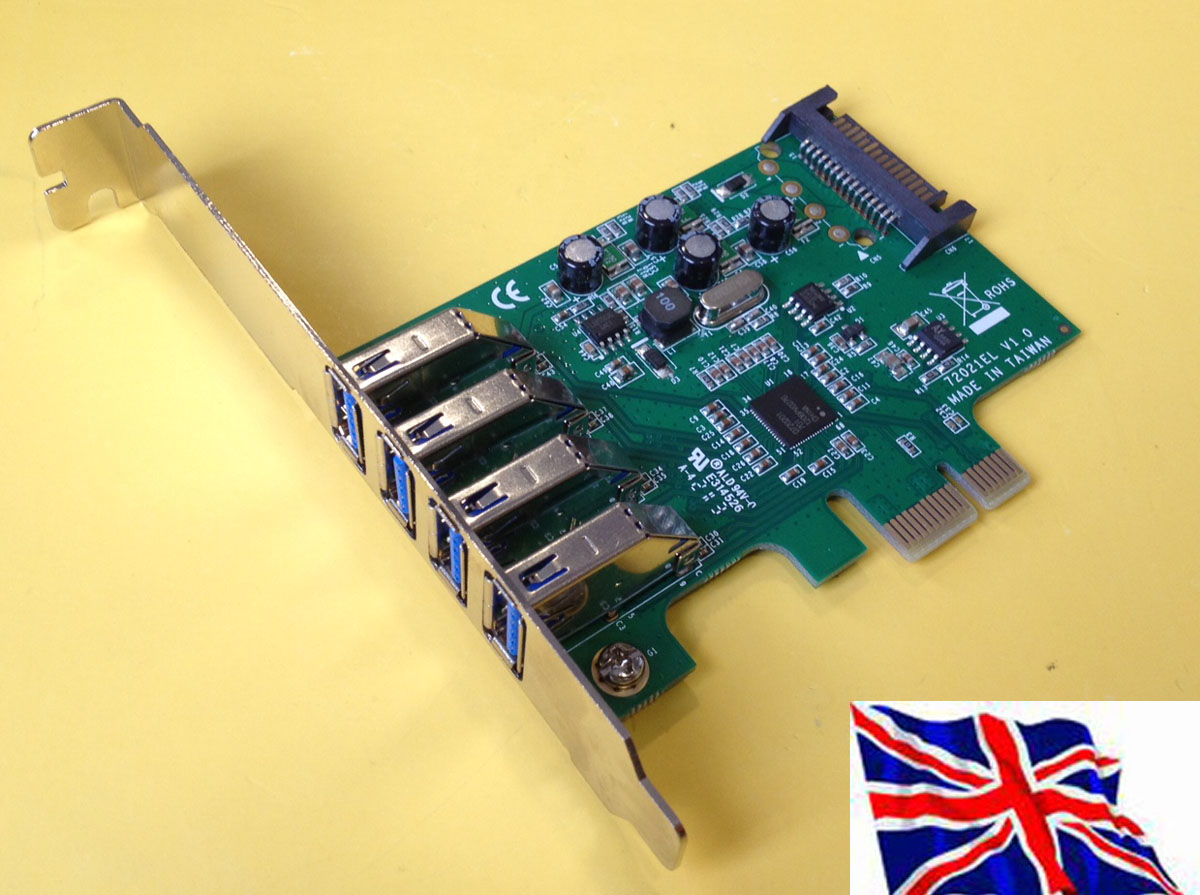

PCI EXPRESS PCIe USB 3.0 X2 NEC Chip

(SUPPORT XP 32/64 , VISTA 32/64 , Windows7 32/64)


PCI-e one chip solution , NEC D720201 chip

 Driver 3.0.23.0  can be download from our web site.

 The D720201 is the Universal Serial Bus 3.0 host controller, based upon Universal Serial Bus 3.0 Specification, and Intel’s eXtensible Host   Controller Interface (xHCI).
 The D720201 has PCI Express® bus interface, and it is applicable for PCI Express solution for host PC system. The D720202 works up to 5   Gbps for data transfer when connecting to USB 3.0 compliant peripherals, while maintaining compatibility with existing USB peripheral devices.

 FEATURES
 • Based upon Universal Serial Bus 3.0 specification Revision 1.0, which is released by USB Implementers Forum, Inc
 - Supports the following speed data rate as follows;
 Low-speed (1.5 Mbps) / Full-speed (12 Mbps)

 High-speed (480 Mbps) / Super-speed (5 Gbps)
 - Supports 4 downstream ports for all speeds
 - Supports all USB compliant data transfer type as follows; Control / Bulk / Interrupt / Isochronous transfer
 • Based upon Intel’s eXtensible Host Controller Interface (xHCI) Specification revision 0.95
 • Support USB legacy function
 • Based upon PCI Express Base Specification 2.0
 • Supports ExpressCardTM Standard Release 1.0
 • Supports PCI Express Card Electromechanical Specification Revision 2.0
 • Supports PCI Bus Power Management Interface Specification revision 1.2
 • Operational registers are direct-mapped to PCI memory space
 • Supports Serial Peripheral Interface (SPI) type ROM
 • System clock: 24 MHz crystal or 48 MHz external clock.
 • 3.3 V and 1.05 V power supply
